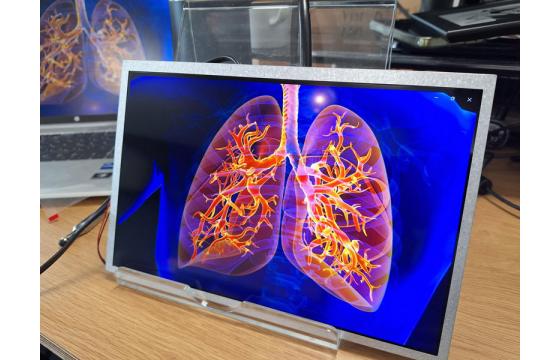

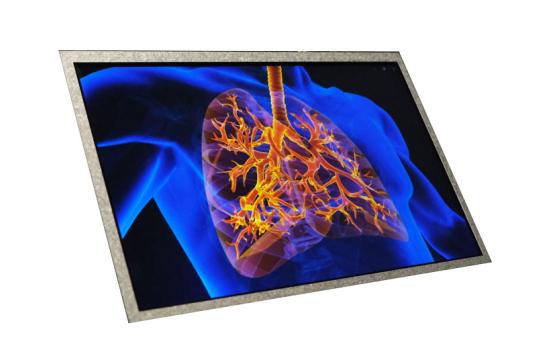

10.1" IPS TFT LCD Display with QD Film and HDMI Board
10.1" IPS TFT LCD Display with QD Film and HDMI Board
IPS-TFT
10.1"
500
LVDS
HDMI
10.1" IPS TFT LCD module is enhanced by a Quantum Dot Enhancement Film (QDEF) included in the backlight structure that can display a colour gamut up to 50% larger than a similar display with a conventional backlight unit, an improvement that delivers greater visual experience for viewers.
- 10.1'' IPS-TFT display
- LVDS Interface
- HDMI Board for plug and play capability
- Quantum Dot Enhancement Film
- Wide all round viewing angle
Specifications
| Feature | Specification |
|---|---|
| Part Number | 12323 |
| Screen Size | 10.1" |
| Resolution | 1920 x 1200 |
| Brightness | 500 |
| Aspect Ratio | 16:10 |
| Contrast Ratio | 900 |
| Interface | LVDS |
| Orientation | Landscape |
| Dimensions | 231.40 x152.3 x 9.1 mm |
| Operating Temperature | -20° to +70°C |
* Optional feature available on this product
