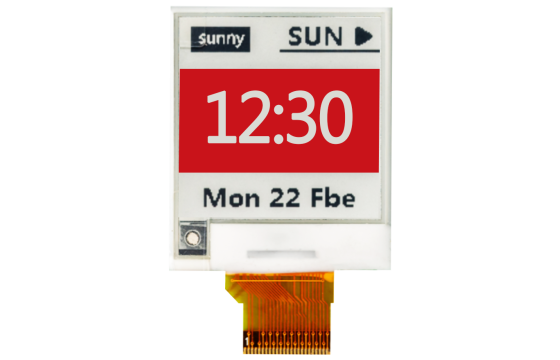

1.54" square red, black & white ePaper display

Navigate

200 × 200 RBW ePaper display

E-PAPER
1.54"
Touch
SPI

This 1.54" square red, black and white ePaper display module with 200 × 200 pixels features high contrast, wide viewing angle, low power consumption, slim outline and pure reflective mode.

It is suitable for Electronic Shelf Label (ESL) Systems, product tag, fitness wearable devices or portable medical and industrial instrumentation.

  • Screen Size: 1.54"
  • Resolution: 200 x 200
  • Touch Options: CTP, RTP, None
  • Display Colour: Red, Black and White
  • Module Dimensions: 31.8 × 37.3 × 0.98 mm
  • Operating Temperature: 0° to 50°C
Send Enquiry

Get started on your project

Loading
FeatureSpecification
Display modeEPD
Screen Size 1.54"
Resolution 200 x 200
OrientationPortrait
Grey Level2
Reflectivity35
Contrast Ratio (minimum)8:1
InterfaceSPI
Touch Type Touch Options: CTP, RTP, None
Operating Voltage3.0V
OP Temperature 0° to 50°C
Dimensions31.8 × 37.3 × 0.98 mm
Lifetime1,000,000 times or 5 years

* Optional feature available on this product
