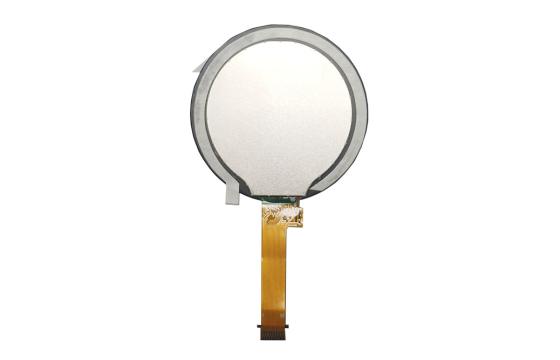

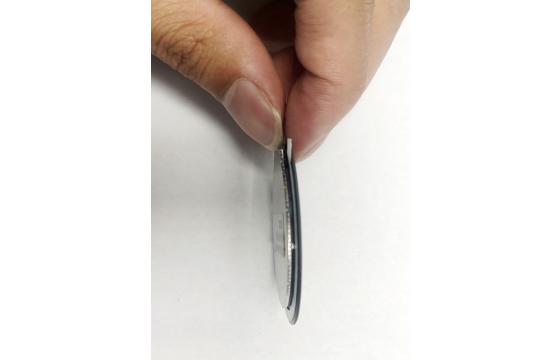

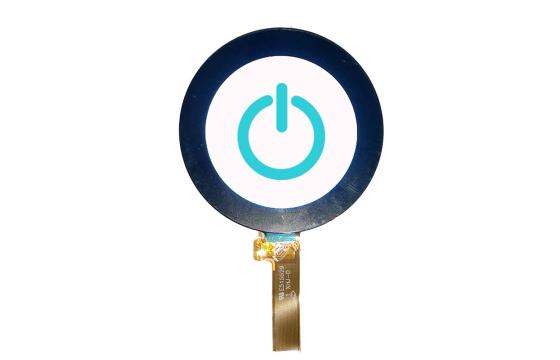

1.3'' Circular IPS TFT Display with SPI interface
1.3'' Circular IPS TFT Display with SPI interface
IPS-TFT
1.3"
300
SPI
This 1.3'' full colour circular IPS TFT display features all round viewing angle and high contrast ratio. It has an optically bonded coverlens and is suitable for smart appliances such as smart thermostats, as well as portable healthcare devices, marine instrumentations and smart industrial IOT devices.
All our displays can be customised by our in-house engineering team to meet your application requirements - see all options available here.
Specifications
Development Kit
| Feature | Specification |
|---|---|
| Part Number | 11811 |
| Screen Size | 1.3" |
| Display Technology | IPS TFT |
| Resolution | 240 x 240 |
| Brightness | 300nits |
| Contrast Ratio | 1100:1 |
| Interface | SPI |
| OP Temperature | -20° to 70°C |
| Module Dimensions | 43.8mm diameter x 2.44mm |
* Optional feature available on this product
The 1.3" Display Kit consists of the following:
To evaluate this display - you can purchase our rotary kit
- Kit Part Number: 11725
- 1.3" Rotary Encoder Display (240 x 240 resoution)
- Programming board
- Basic GUI demo software
- USB cables
Contact us for pricing
