Starterkit-N2930 Baytrail (Pico)

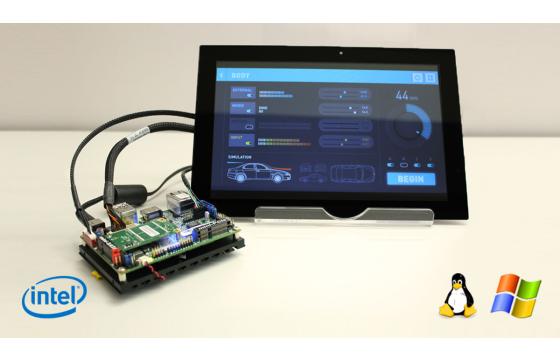

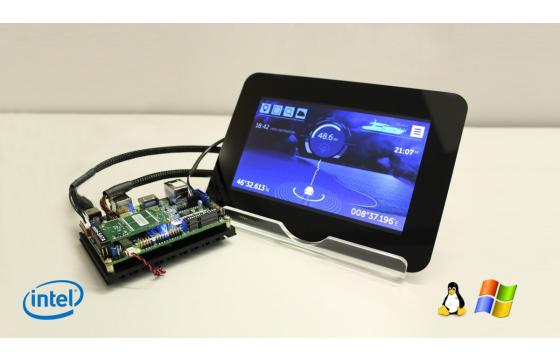

The Starterkit-N2930 Bay Trail Pico is an all in one embedded solution with multi-touch display. The platform comprises high-performance PCAP multi-touch TFT displays pre-integrated with an Intel Bay Trail 64-bit quad core N2930 CPU module and is supported by a Linux, Windows Embedded 7 /8 and Windows 10 Enterprise LTSB.
Gbit Ethernet and Intel graphics in a tiny footprint make it an excellent solution for industrial HMIs where space is a premium. The board also features a half-size mini-PCIe which can be used to add WIFI functionality. The full technical Starterkit documentation and Quick Start Guide can be found under the 'Downloads' Tab.
- 7" WVGA, 10.1" WXVGA or 12.1" XGA display
- Projected Capacitive Touchscreen
- Intel Bay Trail 64-bit quad core N2930 CPU
- Up to 4GB DDR3
- Linux,Windows Embedded 7 or Windows 10 Enterprise LTSB OS
Quick Enquiry Form
| Feature | Specification | ||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CPU Architecture | X86 | ||||||||||||||||||||||||
| CPU Manufacturer | Intel | ||||||||||||||||||||||||
| CPU Model | Bay Trail N2930 Quad Core | ||||||||||||||||||||||||
| CPU Frequency | Up to 1.86GHz | ||||||||||||||||||||||||
| Graphics | 7th Intel Graphics | ||||||||||||||||||||||||
| Memory | Up to 4GB DDR3 | ||||||||||||||||||||||||
| Display Options |
| ||||||||||||||||||||||||
| Display Interface | LVDS HDMI *VGA | ||||||||||||||||||||||||
| Display Resolution (Max) | 1920 x 1200 | ||||||||||||||||||||||||
| Ethernet Ports | 1 | ||||||||||||||||||||||||
| USB 2.0 Ports Host | 7 | ||||||||||||||||||||||||
| USB 3.0 Ports Host | 1 | ||||||||||||||||||||||||
| SATA | SATA2 x 1, mSATA x 1 | ||||||||||||||||||||||||
| PCIe | 2 | ||||||||||||||||||||||||
| UART/Serial | 2 | ||||||||||||||||||||||||
| Expansion Slots | 1 x mSATA / mini-PCIe full size mini-PCIe socket; 1 x half-size mini-PCIe socket | ||||||||||||||||||||||||
| Power Supply Voltage | 12 VDC-IN | ||||||||||||||||||||||||
| Dimensions | 100 x 72 | ||||||||||||||||||||||||
| OS Support | Linux Windows 10 Enterprise LTSB Windows 7 / 8 |
* Optional feature available on this product
| Document | Description |
|---|---|
| Block diagram | Port diagram for NC-885 |
| Block diagram | Block diagram for 7.0" PCAP TFT display module SCF0700XXXGGU05 |
| Block diagram | Block diagram for 10.1" PCAP TFT display module SCX1001XXXGGU33 |
| Block diagram | Block diagram for 12.1" PCAP TFT display module LCX1201XXXGGU05 |
The Starterkits-N2930 Baytrail Pico Board consists of the following:
- 1 x Quick Start Guide
- NC-885N WITH N2930 BAY TRAIL 4 CORE Pico-ITX SBC
- Accessory Package for DX86 range
- Storage: DX86 16GB mSATA 3ME MLC
- PCAP TFT Display of choice between 7", 10.1" or 12.1"
- Display Interface Kit
- Optional content: WIFI Module (Azure) AW-NB159H(OB) 802.11 WiFi B/G/N BT
* other configurations available on request
Send Enquiry| Document | Description |
|---|---|
| NC-885N Bay Trail Pico-ITX SBC | Datasheet |
| 7" PCAP TFT Display module | Datasheet |
| 10.1" PCAP TFT Display module | Datasheet |
| 12.1" PCAP TFT Display module | Datasheet |
| Quick start guide | Quick start guide |
